Description

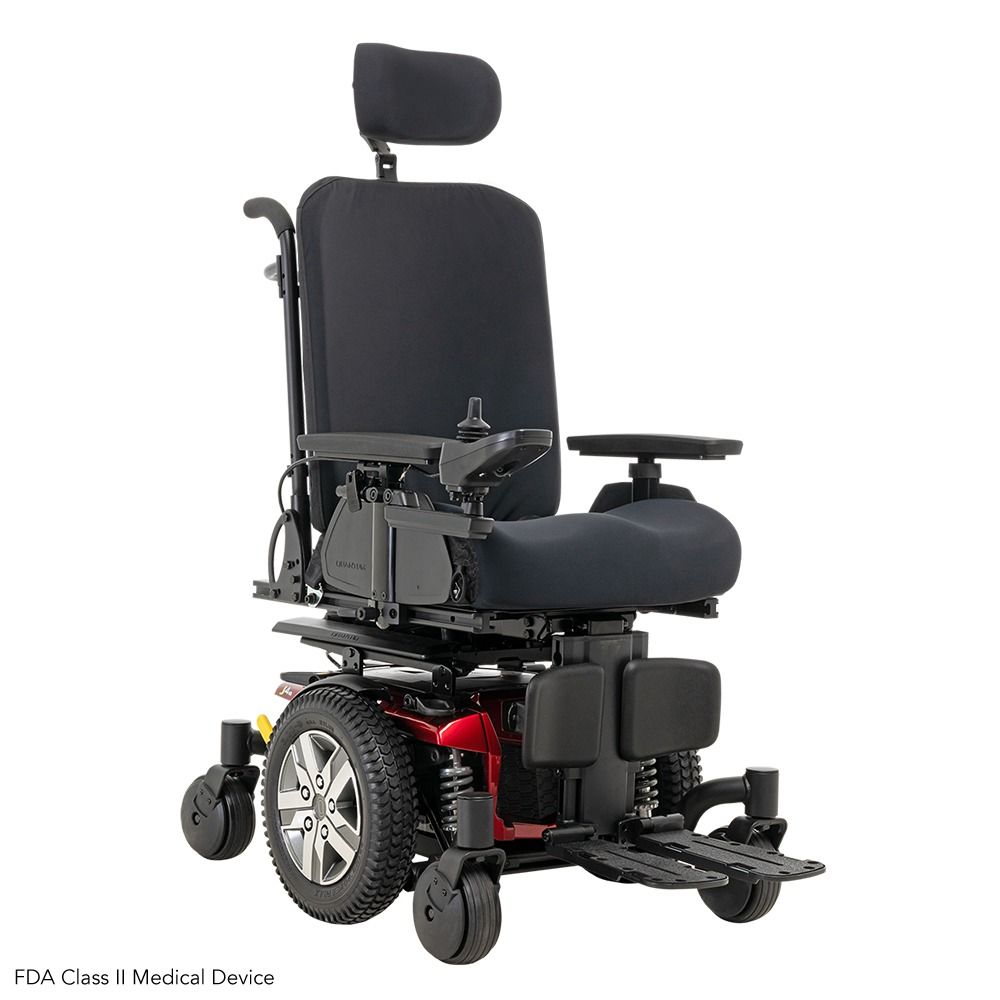

The J4 HD is the perfect solution for users requiring a heavy-duty power chair that doesn't sacrifice indoor agility.Engineered with a robust 400-pound weight capacity and a surprisingly narrow 24.25” base width, the J4 HD excels at navigating tight-quarter environments like narrow hallways and standard doorways. Combining the stability of Mid-Wheel 6® Drive Design with the advanced performance of ATX Suspension, this chair delivers exceptional rehab capability and a smooth, reliable ride at an outstanding value for active heavy-duty users.
FEATURES
Heavy-Duty Performance & Precision The J4 HD is powered by standard 5 mph motors that provide advanced responsiveness and the torque necessary for a 400-lb. weight capacity. Despite its heavy-duty rating, it maintains a remarkably tight 21” turning radius, allowing you to maneuver through your home with the same precision as a standard-sized chair.
Advanced Q4 HD Power Tilt Clinical positioning is a priority with the Q4 HD Power Tilt system, which offers an impressive 55 degrees of tilt. This feature is vital for pressure management, circulation, and increased comfort throughout the day. The seating is highly customizable, with widths and depths ranging from 20” to 24” to ensure a perfect,personalized fit.
ATX Suspension Stability Ride with confidence over varied surfaces thanks to the ATX Suspension (Active-Trac® with extra stability). This system keeps six wheels on the ground at all times, absorbing impacts and preventing wheel hang-ups. Whether you are navigating thresholds indoors or level paths outdoors, the J4 HD provides a stable and secure foundation.
Functional Design & Customization The J4 HD is designed for everyday practicality. It features standard single-post height-adjustable removable arms and back canes up to 25” for superior postural support. It is also fully compatible with a power articulating foot platform, allowing for further ergonomic refinement to meet your specific mobility goals.
GENERAL SPECIFICATIONS
-
What’s Included: J4 HD Power Base, Q4 HD Seating System, Two NF-22 Batteries, and 8A Off-board Charger.
-
Top Speed: Up to 5 mph
-
Weight Capacity: 400 lbs.
-
Base Width: 24.25” – 24.5”
-
Turning Radius: 21”
PRODUCT SPECIFICATIONS
-
Drive Wheels: 14” Flat-Free
-
Caster Wheels: 6” Solid (Front & Rear)
-
Base Length: 35.5”
-
Ground Clearance: 2.9” (at battery tray)
-
Seating Options: Q4 HD Power Tilt (55°)
-
Seat Dimensions: 20”-24” Width and Depth
-
Seat-to-Floor Height: 17.25” – 19.25”
-
Battery Requirements: Two 12V, NF-22
-
Medicare Code: Group 2: Single Power HD (K0837)
